PickGuideLaserTree K1 Mini Plus Review: 20W Laser Engraver with 400×800mm Work Area at $369
The LaserTree K1 Mini Plus handles a problem most desktop laser engravers ignore: working area. At 400×800mm, it gives users a format large enough for A2-size projects — full sign blanks, long leather strips, wide acrylic panels — that a 300×300mm machine would require tiling to complete. The 20W diode laser at 450nm covers wood burning, acrylic cutting, and leather engraving in a single unit at $369.

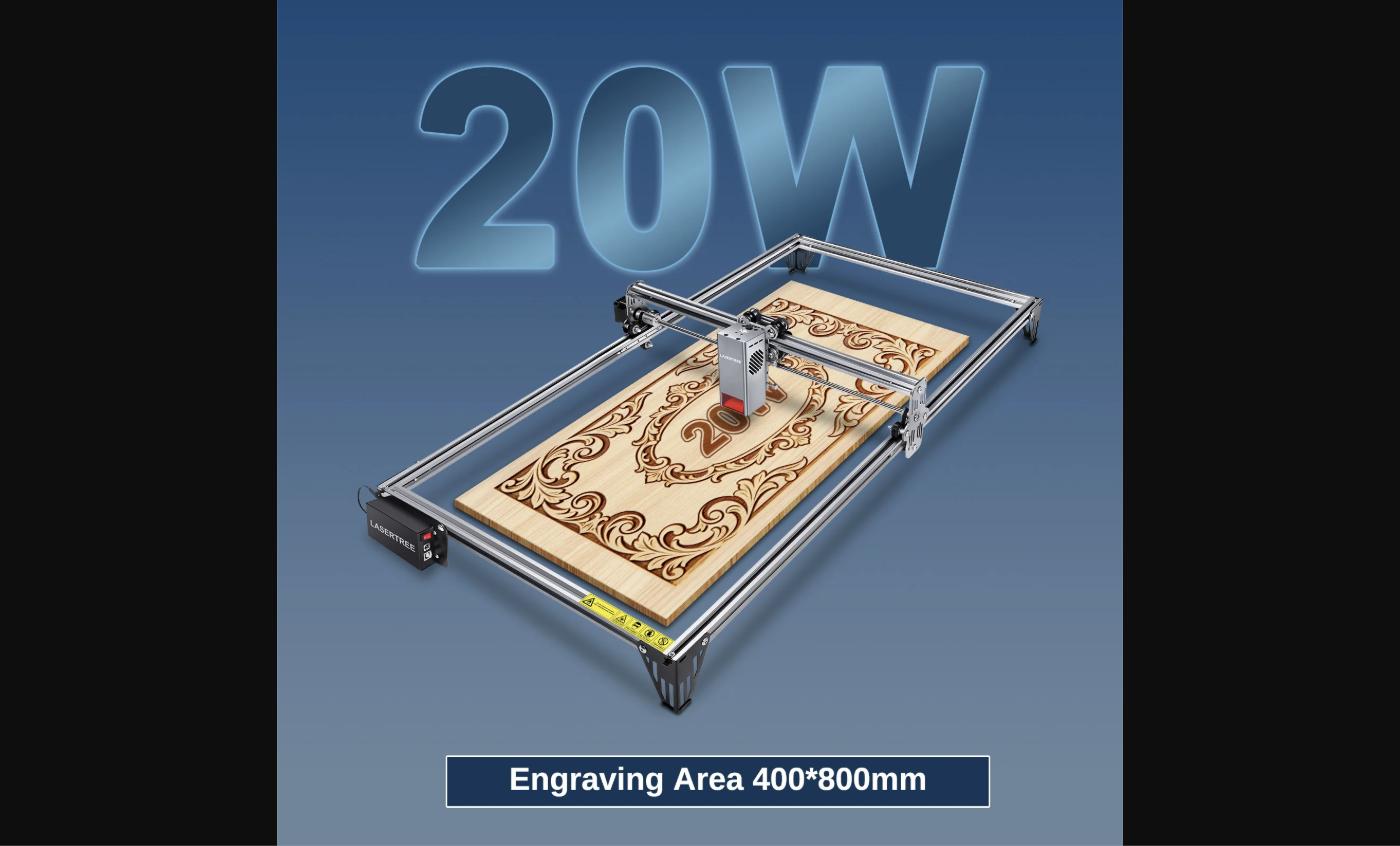

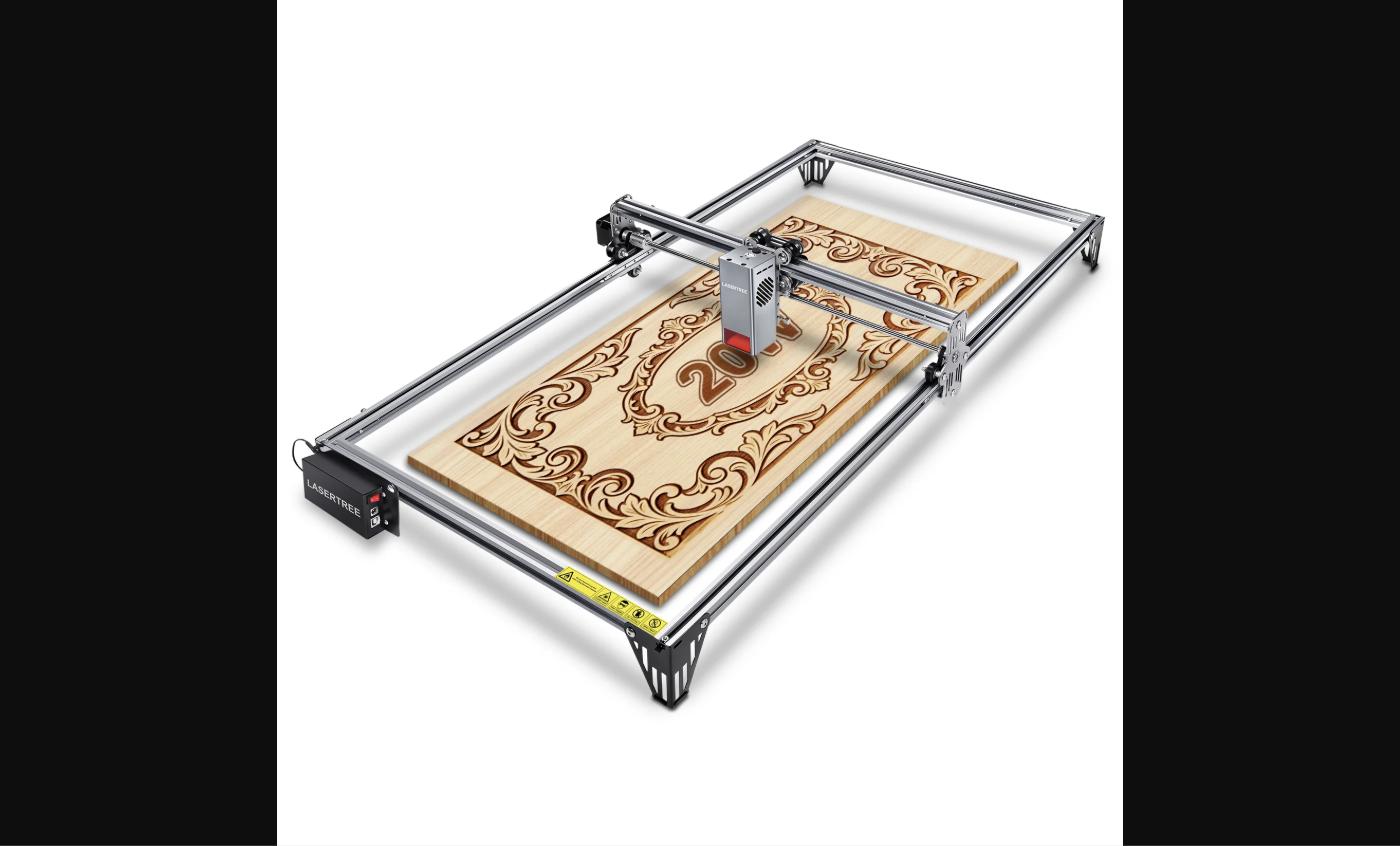

The LaserTree K1 Mini Plus is a 20W diode laser engraving and cutting machine built around an extended 400×800mm working area — double the width of standard 400×400mm desktop formats. The LT-20W laser module outputs at 450nm wavelength with DC 24V input, achieving engraving speeds up to 10,000mm/min. At that speed and power level, it handles engraving on wood, leather, and dark acrylic, and cutting thin plywood and acrylic sheets with multiple passes. The open-frame construction allows material to extend beyond the Y-axis rails, enabling engraving on materials longer than the nominal 800mm limit by manually repositioning the workpiece. Compatible with LightBurn, LaserGRBL, and the manufacturer's own software via USB. Available at $369 (regular $429) with a 14% launch discount through lasertree.com.
Pros
- 400×800mm working area — double the standard format, handles A2-size projects without tiling
- 20W optical output at 450nm — sufficient for wood engraving, leather marking, and thin acrylic cutting
- 10,000mm/min engraving speed reduces project time on large fills and dense patterns
- Open-frame design allows oversized materials to extend beyond the frame rails
- Compatible with LightBurn and LaserGRBL — industry-standard software with full parameter control
- DC 24V input — stable power for consistent laser output at high speeds
- 14% launch discount — $369 versus regular price of $429
Cons
- Open-frame design provides no enclosure — requires safety glasses during operation and ventilation setup
- 20W diode cannot cut thick wood or non-ferrous metal — limited to thin sheet materials and multi-pass cuts
- 400×800mm footprint requires dedicated desk or workbench space — not a countertop unit
- No built-in air assist — improves cut quality and requires a separate pump purchase
- No camera or automatic positioning — large-format jobs require manual workpiece alignment
Who It's For
Good For
- Makers and hobbyists who need larger-than-standard working area for signs, panels, and long stock
- Leather workers engraving straps, belts, bags, and accessories that exceed 400mm in one dimension
- Small production runs where engraving multiple items in a single layout reduces repositioning
- First-time laser buyers who want a machine that won't immediately feel size-limited as skills grow
Skip If
- You need cutting capability for thick wood (6mm+) or metal — the K1 Pro 40W covers heavier material
- You want a fully enclosed machine with built-in fume extraction for indoor use without ventilation
- Your primary work is small jewelry or detailed miniature engraving — a 400×800mm frame is excessive
How It Compares: LaserTree K1 Mini Plus 20W Laser Engraver vs LaserTree K1 Pro 40W Laser Engraver
| Spec | LaserTree K1 Mini Plus 20W Laser Engraver | LaserTree K1 Pro 40W Laser Engraver |
|---|---|---|
| Price | $369 | $749 |
| Laser Power | 20W | 40W~46W |
| Working Area | 400×800mm | 400×400mm |
| Focal Spot | Standard | 0.12×0.16mm (fine) |
| Wavelength | 450nm | 450nm |
| Best for | Large-format projects, signs, leather goods | Thick material cutting, fine detail engraving |
The K1 Mini Plus is the large-area choice at $369 — ideal for sign-making and long-stock work. The K1 Pro doubles the laser power for heavier cutting and tighter engraving detail at $749 in a square 400×400mm format.
See LaserTree K1 Pro 40W Laser Engraver →
Verified Ratings
Key Specs
| Laser Power | 20W Optical (Diode) |
| Wavelength | 450nm (±10nm) |
| Working Area | 400×800mm |
| Engraving Speed | 10,000mm/min |
| Power Input | DC 24V |
| Software | LightBurn / LaserGRBL / LaserTree App |
| Connectivity | USB |
| Frame | Open Frame |
In The Box
- K1 Mini Plus laser engraver (assembled rails)
- 20W laser module
- Power adapter (24V)
- USB cable
- Protective laser safety glasses
- Hex tool set
- User manual
Frequently Asked Questions
What materials can the K1 Mini Plus engrave and cut?
The K1 Mini Plus 20W diode laser handles engraving on wood, bamboo, leather, dark acrylic, anodized aluminum, and coated metals. For cutting, it can cut thin plywood (3mm typically needs multiple passes) and acrylic sheet up to around 4–5mm depending on color and settings. It cannot cut clear acrylic, thick wood, or any bare metal — those require CO2 or fiber laser systems.
What software does it work with?
The K1 Mini Plus is compatible with LightBurn (the industry standard for laser engravers, paid), LaserGRBL (free, Windows), and LaserTree's own software. LightBurn gives the most control over speed, power, and pass settings for different materials.
Why is the working area 400×800mm when most machines are 400×400mm?
LaserTree designed the K1 Mini Plus with an extended Y-axis to address the size limit that frustrates users working on signs, long leather goods, or large panel art. The 800mm depth doubles the capacity of standard machines without increasing the price to the level of full A1 machines.
Do I need air assist with the K1 Mini Plus?
Air assist is not included but is strongly recommended for cutting tasks. It blows air across the focal point to clear combustion gases, extend lens life, and produce cleaner cuts. LaserTree sells a compatible 26L air pump separately. For engraving-only tasks, air assist is optional.
How does the K1 Mini Plus compare to the K1 Pro?
The K1 Mini Plus uses a 20W diode at 450nm in a 400×800mm format — it covers larger work area at lower cost. The K1 Pro uses a 40W–46W LT-K40 module in a 400×400mm format — it delivers significantly higher cutting power and finer focal spot (0.12×0.16mm vs. standard) at higher cost. Choose Mini Plus for area; choose K1 Pro for power.
Verdict
The K1 Mini Plus earns its price by solving working area constraints that more expensive 300×300mm machines impose. The 400×800mm format is genuinely useful for sign-making, panel work, and leather goods, and the 20W output handles the materials that fit that format well. At $369 with a current 14% discount, it represents a practical entry into large-format diode laser engraving that doesn't require the step up to a CO2 machine.
